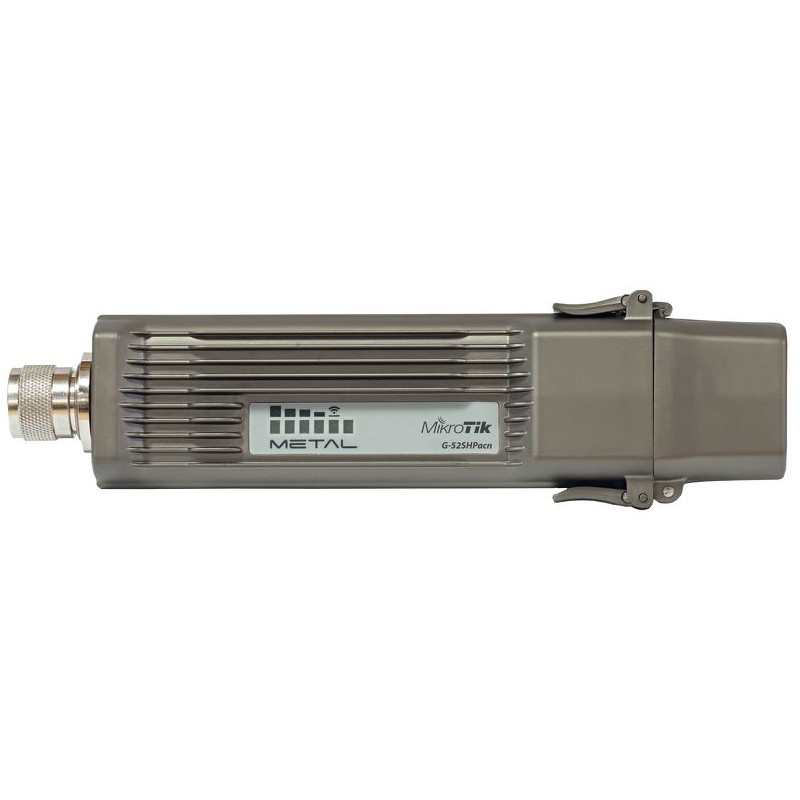

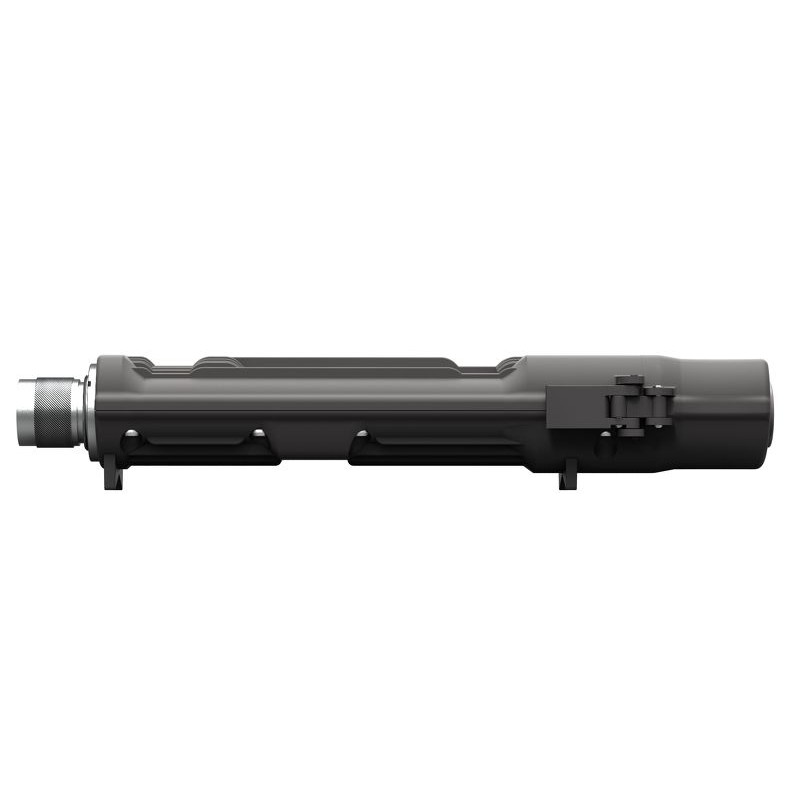

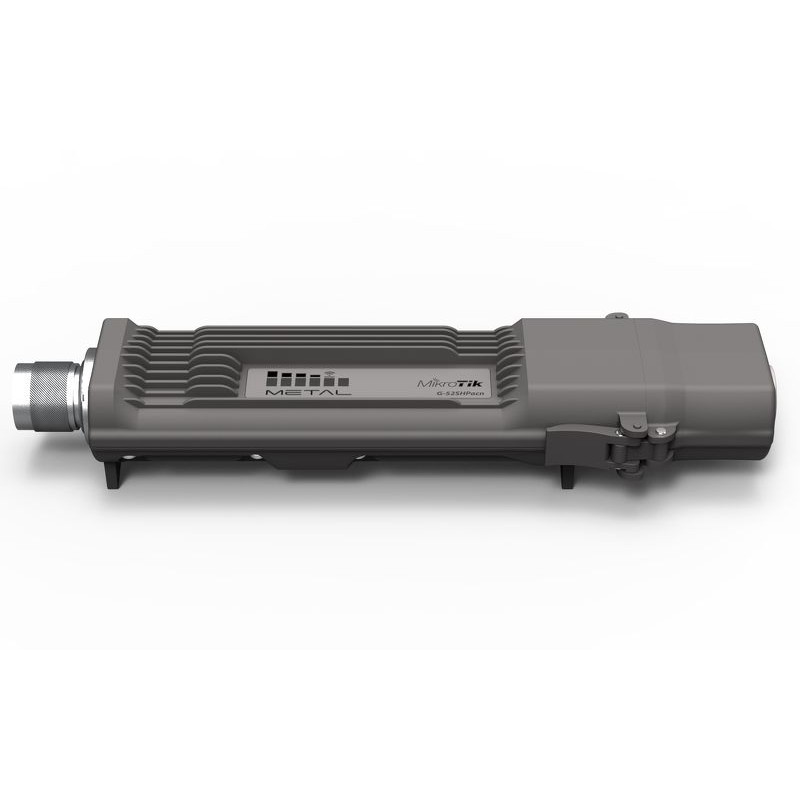

MikroTik Metal 52 ac
RBMetalG-52SHPacn
Nuevo
MikroTik
Mod. RBMetalG-52SHPacn
Metal 52 ac, 2.4/5GHz, 64MB RAM, 1 Giga, max 31dBm, PoE, L4
Más información
Ahora con soporte 802.11ac, un puerto Gigabit Ethernet y una banda inalámbrica seleccionable (2.4GHz o 5GHz, hasta 80MHz de ancho canal). El nuevo puerto Gigabit lo ayudará a aprovechar todas las ventajas de la tecnología inalámbrica de alta velocidad 802.11ac.
El Metal 52 ac admite 2.4GHz, 5GHz y todos los modos inalámbricos heredados (802.11b / g / n para 2.4GHz y 802.11a / n / ac para 5GHz).
Specifications
| Details | |
|---|---|
| Product code | RBMetalG-52SHPacn |
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 215x60x38mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 11 W |
Wireless
| Details | |
|---|---|
| AC speed | AC750 |
| Antenna gain dBi for 2.4 GHz/5 GHz | 6 |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/n/ac, 802.11b/g/n |
| Wi-Fi generation | 5 |
| Wireless 2.4 GHz/5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz/5 GHz number of chains | 1 |
| Wireless 2.4 GHz/5 GHz chip model | QCA9889 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -93 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -93 |
| MCS7 | 26 | -74 |
| MCS9 | 22 | -69 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 31 | -97 |
| 11MBit/s | 31 | -91 |
| 6MBit/s | 31 | -93 |
| 54MBit/s | 28 | -77 |
| MCS0 | 31 | -93 |
| MCS7 | 27 | -72 |
