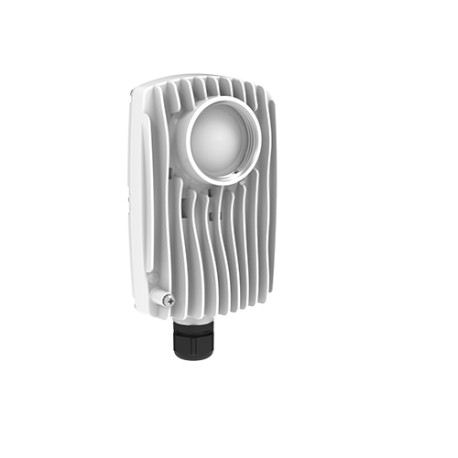

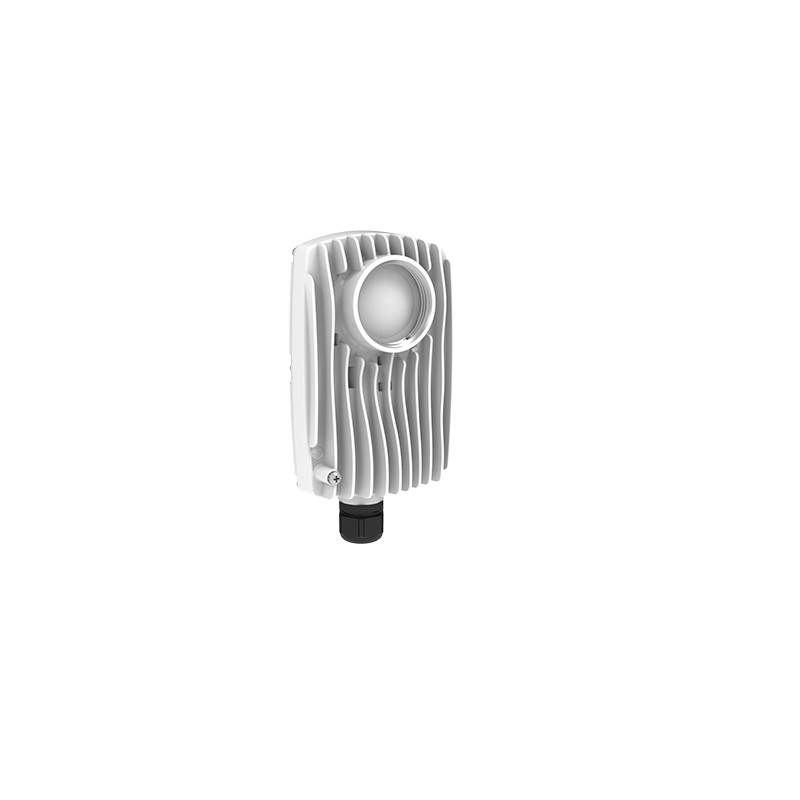

Mimosa C5x

C5x

Nuevo

Mimosa Networks

Mimosa C5x es un CPE 2x2 MIMO, banda de 5GHz, antena integrada de 8 dBi con 4 opciones de antenas N5-X (12, 16, 20 y 25 dBi) mediante interfaz "Twist-On". Mimosa C5x es la radio integrada más versátil de la industria, con opciones de conexión de horno modular.

Más detalles

Más información

Mimosa C5x es la radio integrada más versátil de la industria, con opciones de conexión de horno modular. La solución ultra robusta ofrece una operación de frecuencia extendida de 4,9 a 6,4 GHz, con la mejor inmunidad al ruido de su clase. Con lo último en flexibilidad y eficiencia de costos, el C5x es la solución de ir a PTP o PTMP para implementaciones de 5 GHz.

Technical Specifications
Performance
• Max Throughput:
PTP: 700 Mbps IP (866 PHY)
PTMP: 500 Mbps IP (866 PHY)
• Wireless Protocols: Mimosa SRS; WiFi Interop
• Modes: PTP Backhaul (requires feature key); PTMP Client
Radio
• MIMO and Modulation: 2x2:2 MIMO OFDM, up to 256 QAM
• Bandwidth: 20/40/80 MHz channels, tunable to 5 MHz
increments for Mimosa SRS and WiFi Interop mode
• Frequency Range: PTP/PTMP: 4900–6400 MHz
(restricted by country of operation)
• Max Output Power: 27 dBm
• Sensitivity (MCS0):
-87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
• Max Power Consumption: 9.2 W average; 12.9 W max
• System Power Method: Passive POE (24-56 VDC)
• PoE Power Supply: Passive POE compliant, 24-56 V
Power over Ethernet supply (not included)
Physical
• Dimensions:
Height: 175 mm (6.89”)
Width: 70 mm (2.75”)
Depth: 61 mm (2.40”)
• Weight: 0.37 kg (0.82 lbs)
• RF Connector Type: Mimosa N5-X twist-on
• Enclosure Characteristics:
Outdoor, die-cast aluminum, UV stabilized paint
• Mounting: Dual attached pole mount straps
• Grounding: Ground lug
• Wind Survivability: 200 km/h (125 mph)
Environmental
• Outdoor Ingress Protection Rating: IP55
• Operating Temperature: -40°C to +55°C
(-40°F to 131°F)
• Operating Humidity: 5 to 100% condensing
• Operating Altitude: 4,420 m (14,500’) max
• Shock & Vibration: ETS 300-019-2-4 class 4M5
Features
• Gigabit Ethernet: 10/100/1000-Base-T
• Management Services: Mimosa cloud monitoring and
management; SNMPv2 & Syslog monitoring; HTTPS;
HTML5-based web UI
• Smart Spectrum Management: Active scan monitors/logs
ongoing RF interference across channels with no service impact;

Integrated Radio with Modular Antenna Options

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

N5-X12

C5x Horn

12 dBi 29 dB F/B 27 dB F/S

N5-X16

C5x Horn

16 dBi 50 dB F/B 43 dB F/S

N5-X20

C5x Cassegrain Antenna

20 dBi 35 dB F/B 37 dB F/S

N5-X25

C5x Cassegrain Antenna

25 dBi 40 dB F/B > 45 dB F/S

Versatile

Ultimate Flexibility

Out of the box, the entry level C5x can be used in PTMP mode with speeds of up to 500 Mbps, or PTP mode with speeds of up to 700 Mbps.

Flexible

Incredible RF Performance

Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

Wideband

Extended Frequency

To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.

Designed

Ultra Rugged

The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather.

FAQ

Can the C5x base radio at 8 dBi be used without an antenna?

Yes. You can use the base C5x 8 dBi radio without an antenna for short distance links. Please remove the locking screw from the twist-on screws to serve as a drain hole.
