L-com HA5801-500 Outdoor

HA5801-500

Nuevo

L-com

HA5801-500

Amplificador WiFi 500Mw, 5.8GHz, Outdoor

Más detalles

Más información

HyperAmp® HA5801-500 is a 5.8 GHz outdoor amplifier for 802.11a wireless LANs. It is compatible with IEEE 802.11a OFDM radios as well as radios using Direct Sequence or Frequency Hopping Spread Spectrum modulation.

The HA5801-500 is a fixed gain amplifier with up to 500 mW or +27 dBm of output power. The gain is fixed at the factory at +10 dB for TX and 10 dB for Rx. The receive gain compensates for cable losses and actually increases the receive sensitivity of most wireless LAN radios. This feature permits long cable runs with no degradation in operating range. Since this is a outdoor amplifier it can improve range and reliability by placing up to full transmit power as well as 12 dB of receive gain directly at the antenna where it is most effective.

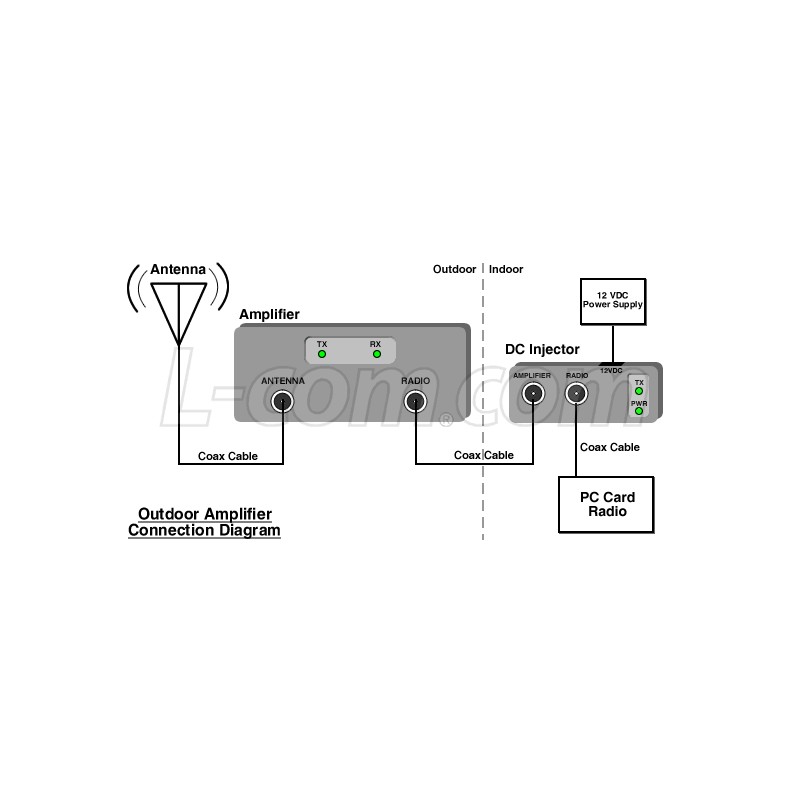

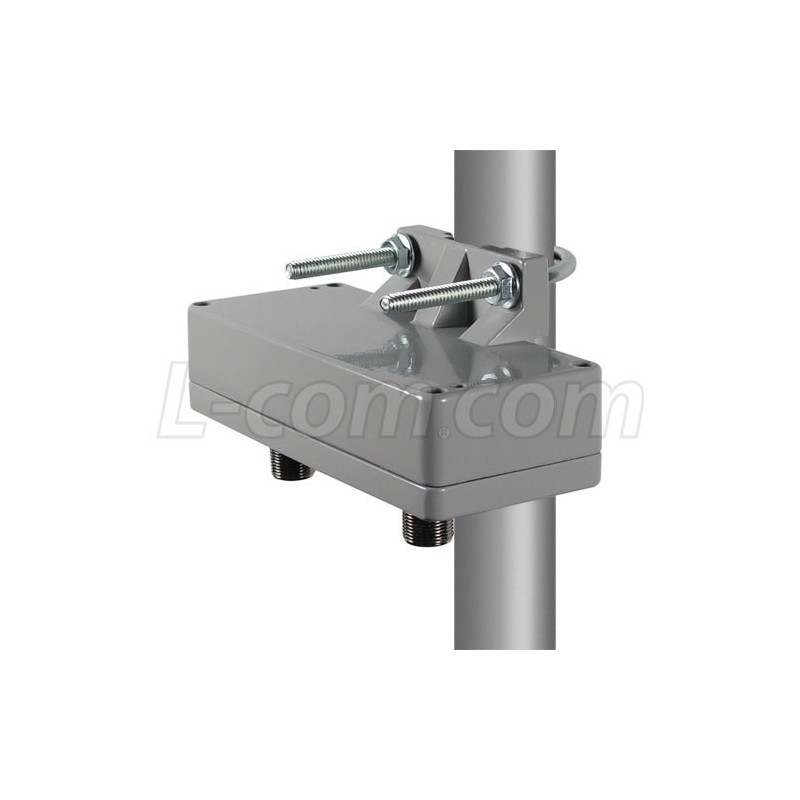

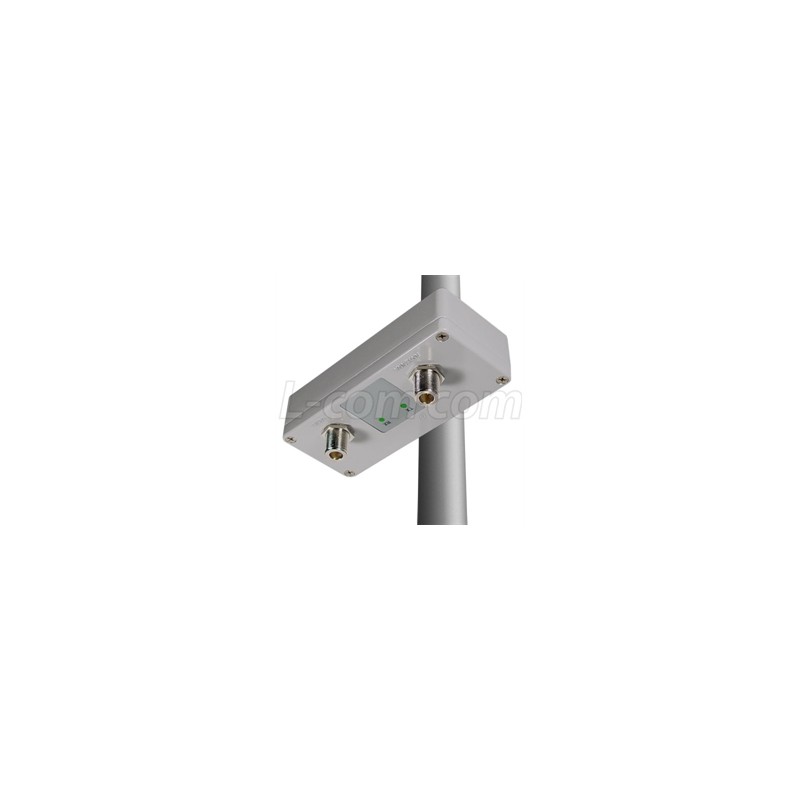

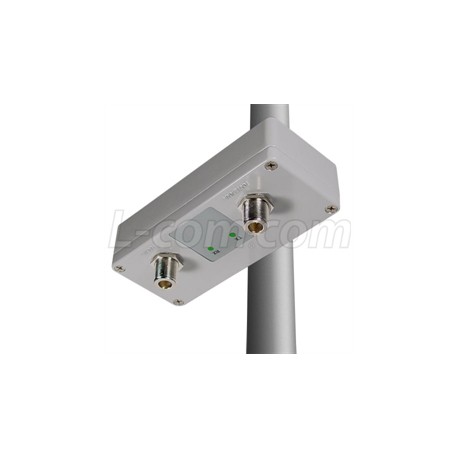

Designed for outdoor installations, the HA5801-500 features rugged weatherproof construction to ensure years of reliable operation in the harshest environments. Included with this model, the DC Power Injector provides power to the amplifier through the antenna cable, simplifying installation. Current-sensing circuits provide remote amplifier diagnostic LEDs. In addition, this unit provides effective lightning protection with multi-strike capability.

Note:
This Hyperlink bi-directional amplifier is designed for burst half-duplex operation. It is not intended for constant transmit or CW operation. Operation of the amplifier in CW mode will damage the amplifier and void the warranty.

For additional information and complete specifications, click on the data sheet link below.

WiFi Amplifier 5800 MHz

Features:

  • 10 dB Transmit and Receive Signal Gain
  • Integral Lightning Protection & Transmit and Receive LEDs
  • All-Aluminum Construction & Durable UV-Stable Finish

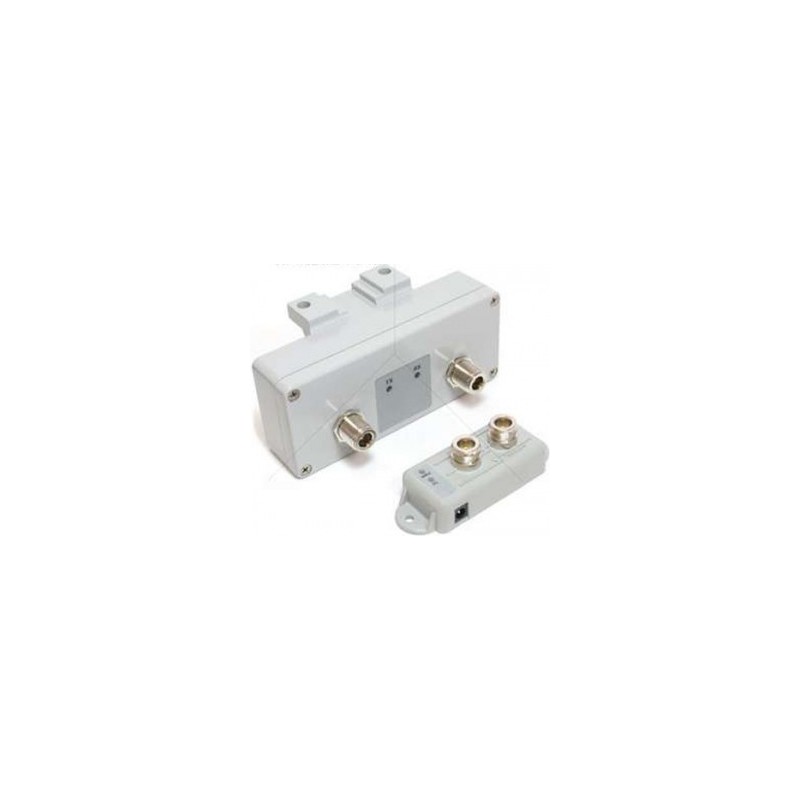

  • Includes DC Injector and Power Supply
Transmit Power 500 mW (27 dBm)
Frequency 5725-5850 MHz
(Call for other frequencies)
Receive Gain 10 dB nom.
Transmit Gain 10 dB
Dimensions 4.5 x 2.5 x 1.3 (inches)
117 x 64 x 33 (mm)
Weight .68 lbs. (.30 Kg)
Water Resistant Rating (Outdoor Models) IEC 60529 IPX7
Operating Mode Bi-directional, half-duplex Time Division Duplex. Senses RF carrier from transmitter and automatically switches from receive to transmit mode
Operating Temperature -40°C to 50°C
(-40°F to 122°F)
Current Draw 1 Amps Peak Tx and 0.05A Peak Rx
Supply Voltage 8-12VDC
