L-com HA2401GI-500 Indoor

HA2401GI-500

Nuevo

L-com

HA2401GI-500

Amplificador de señal WiFi de 500mW 2.4GHz indoor

Más detalles

Más información

L-com, Amplifier 500mW, 2.4GHz Indoor

HyperAmp® HA2401GI-500 amplifiers are compatible with 802.11g (b/g) wireless LAN equipment. Hyperlink's Active Power Control circuit automatically adjusts the amplifier's gain to provide a constant output power regardless of cable length.

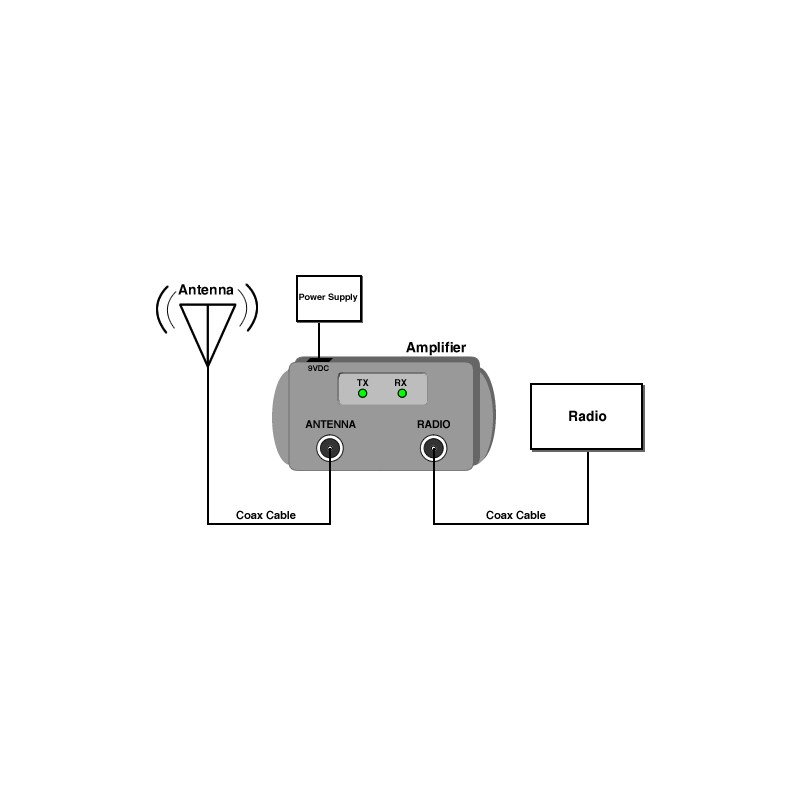

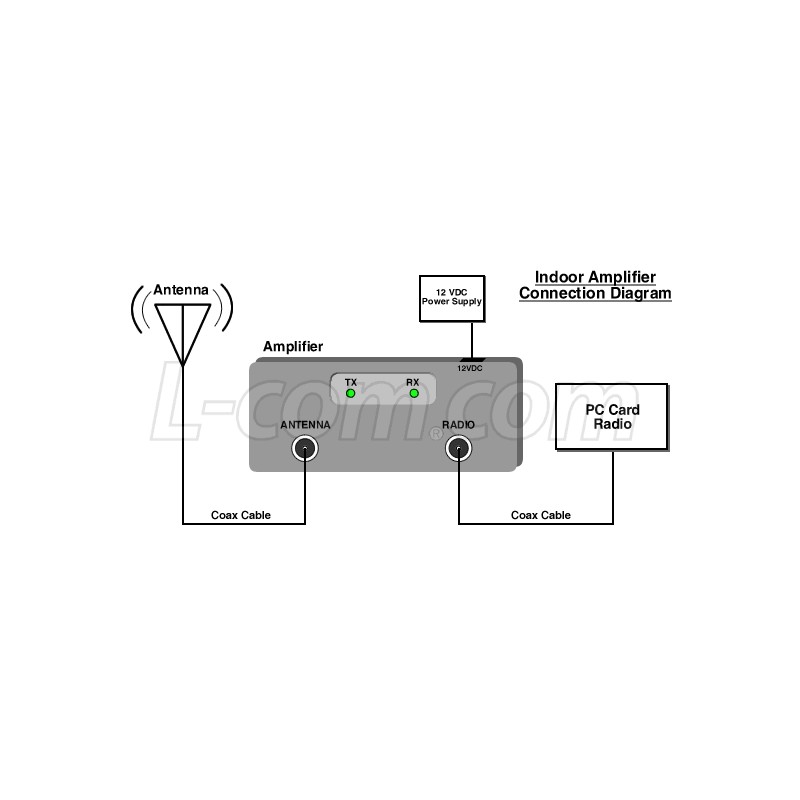

The HyperAmp® HA2401GI series improves range by delivering full transmit power directly at the antenna where it is most effective. In addition the unit's receive gain compensates for cable losses. The unit can be configured to deliver the full transmit power with as little as 1 mW of input power, permitting cable runs of several hundred feet with no degradation in operating range.

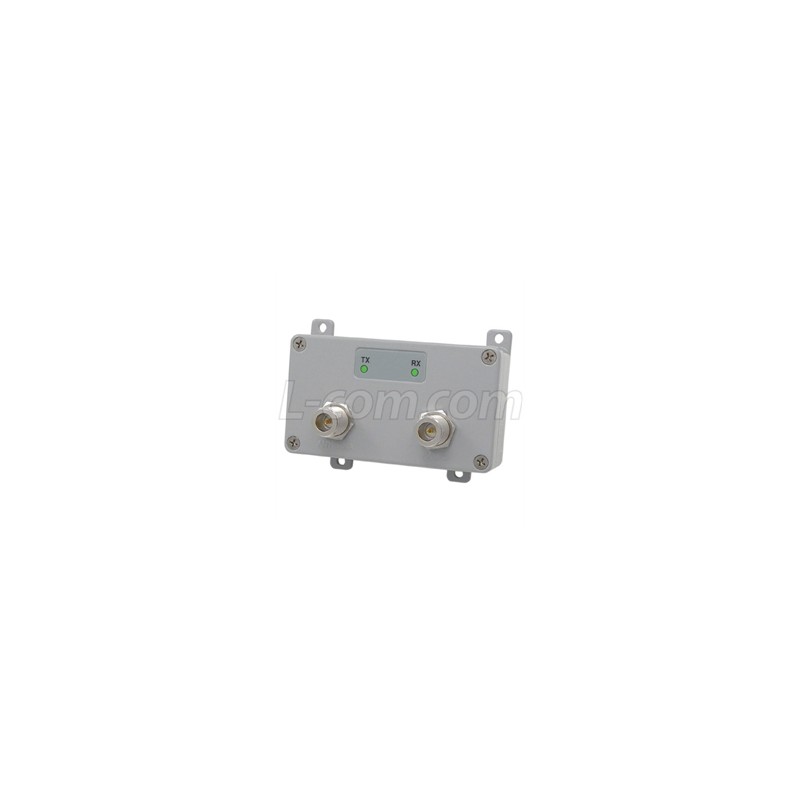

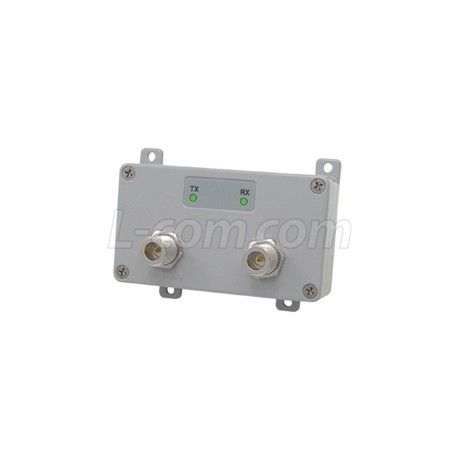

Designed to be installed indoors or in weather-resistant enclosures such as HyperLink's NEMA enclosures, this amp features a rugged cast aluminum housing with integral mounting tabs. The staggered mounting feet allow multiple amplifiers to positioned next to each other with minimal wasted space.

The power supply included with the amplifier is rated at 100-240 VAC @ 50/60 Hz allowing it to be used in the US as well as in the EU when used with the optional PSX-EU2 Plug converter (US NEMA 6-15R Flat Blades to EU 4/4.8 mm round pins).

Note:
This Hyperlink bi-directional amplifier is designed for burst half-duplex operation. It is not intended for constant transmit or CW operation. Operation of the amplifier in CW mode will damage the amplifier and void the warranty.

Guaranteed Quality
HyperAmp® is designed and manufactured in the U.S.A. and is backed by L-com's Limited Warranty.

Features:

  • IEEE 802.11g (b/g) Compatible
  • Active Power Control
  • N-Female Connectors
  • 9VDC Power Supply Included
  • 1 Year Limited Warranty

Applications:

  • 2.4 GHz ISM Band Applications
  • 802.11b and 802.11g WiFi Wireless LAN
  • Public Wireless Hotspot

Specifications

Transmit Power 500 mW (27 dBm)
Receive Gain 15 dB nom
Frequency 2400 - 2500 MHz
Max. Input Power 100 mW (20 dBm)
Operating Mode Bi-directional, half-duplex Time Division Duplex. Senses RF carrier from transmitter and automatically switches from receive to transmit mode
Operating Temperature -40C to 50C (-40F to 122F)
Dimensions 4.5 x 2.5 x 1.3 (inches)
117 x 64 x 33 (mm)
Weight .68 lbs. (.30 Kg)
Current Draw 0.80A Peak Tx and 0.06A Peak Rx
Supply Voltage 9-12VDC -/+1V
