L-com HG2458-14DP-3NF

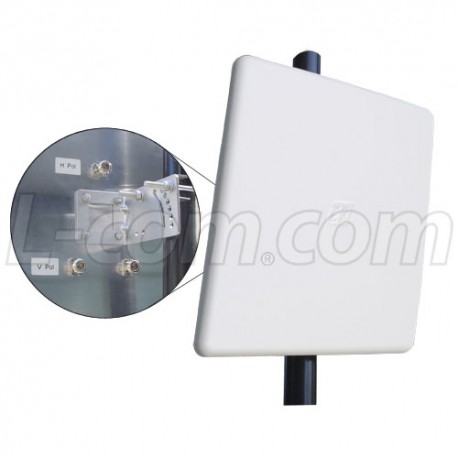

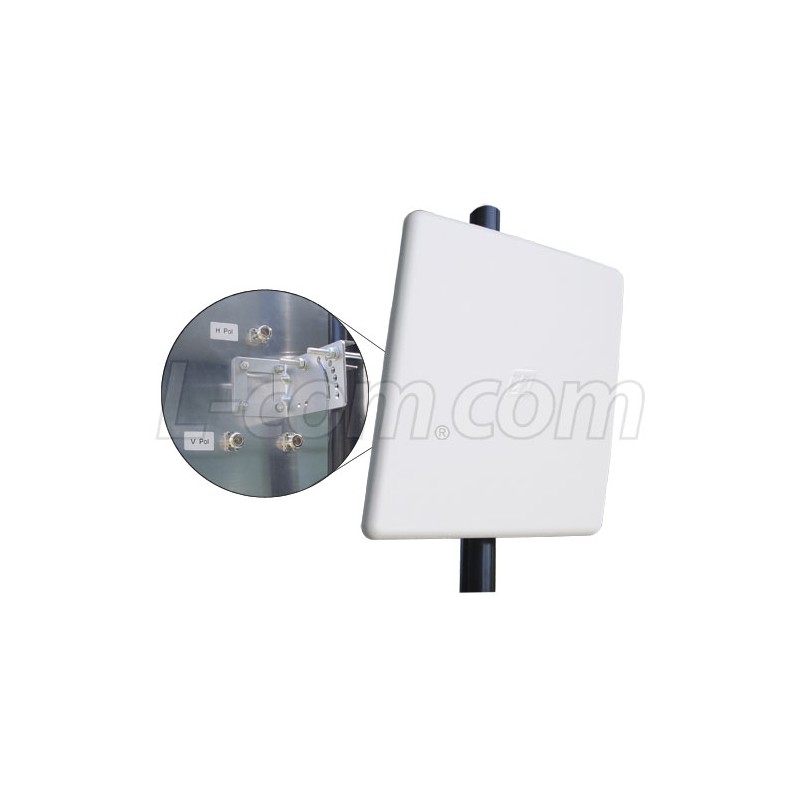

The HyperLink Wireless HG2458-14DP-3NF Flat Panel Antenna combines vertical and horizontal polarization with high gain over multiple frequencies in a single enclosure. It is a professional quality antenna designed primarily for MIMO point-to-multipoint and point-to-point applications in the 2.4 GHz and 5.8GHz frequency bands. In addition, this antenna is compatible with 802.11ac applications which provides up to 1 Gbps wireless transmissions as well as 80 MHz channel bandwidth.

Rugged and Weatherproof

This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor and outdoor operation. The HG2458-14DP-3NF antenna is supplied with a tilt and swivel mast mount kit. This allows quick installation at various degrees of up/down tilt for easy alignment.

Features:

• Three Independent 14 DBi Antennas, Two vertical and one horizontal elements
• 802.3a/b/g/n Radio Applications
• MIMO - Multiple-Input and Multiple-Output
• Dual Polarity feed system in single enclosure. Dual Band, high gain operation
• UV-resistant radome for all-weather operation

Applications:

• 2.4/5.8 GHz Indoor/Outdoor Wireless LAN systems
• Supports 1x2, 2x2, 2x3, 3x3 MIMO AP/Router
• Supports IEEE 802.11 a/b/g/n and 802.11ac applications
• MIMO, WISP, WiFi
• Hospitality, Industrial, Municipality
